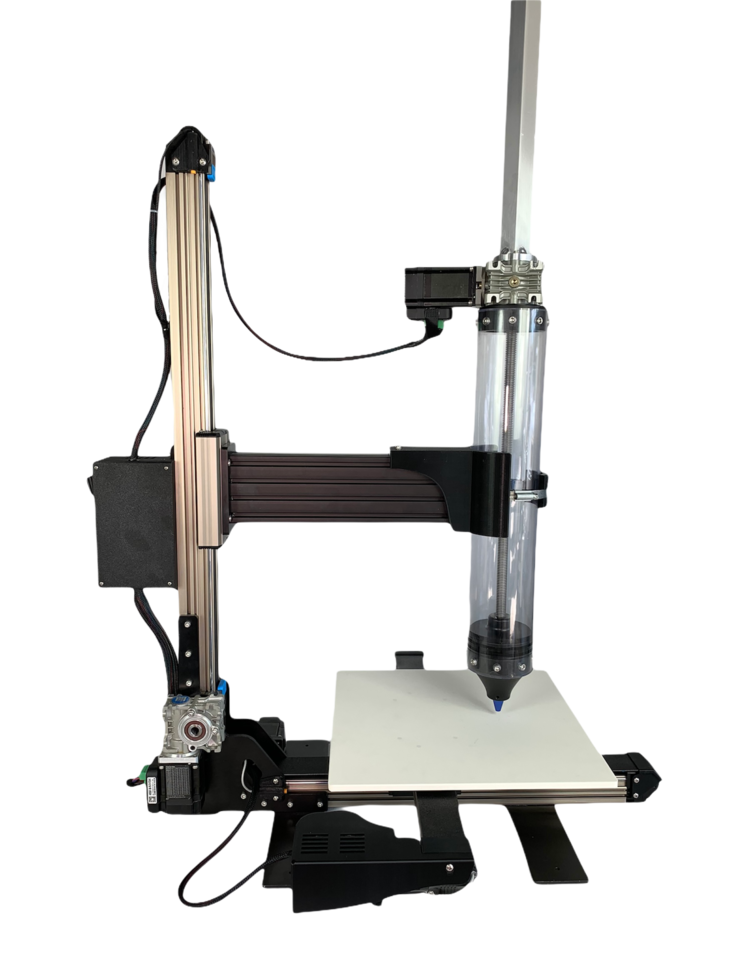

3D PotterBot 10 Super
Product Details
The 3D Potterbot 10 Super ceramic 3D printer has all the benefits of the 10 PRO, but with a larger clay extruder. You can print larger objects or sequentially without having to reload the tubes.
3D Potterbot Super 10
The SUPER 10 ceramic 3D printer model has a more robust construction to carry the higher-volume of 3600 ml clay extruder. This large hybrid motor extruder is capable of much faster speeds of extrusion than our standard model 10. Large prints or sequential objects printing can be accomplished without changing the tubes so it is ideal for a production environment. If large prints is what you are looking for, you can also consider the 10XL, or the Scara models.
Product Details
The 3D Potterbot 10 Super ceramic 3D printer has all the benefits of the 10 PRO, but with a larger clay extruder. You can print larger objects or sequentially without having to reload the tubes.
3D Potterbot Super 10
The SUPER 10 ceramic 3D printer model has a more robust construction to carry the higher-volume of 3600 ml clay extruder. This large hybrid motor extruder is capable of much faster speeds of extrusion than our standard model 10. Large prints or sequential objects printing can be accomplished without changing the tubes so it is ideal for a production environment. If large prints is what you are looking for, you can also consider the 10XL, or the Scara models.
Product Details
The 3D Potterbot 10 Super ceramic 3D printer has all the benefits of the 10 PRO, but with a larger clay extruder. You can print larger objects or sequentially without having to reload the tubes.
3D Potterbot Super 10
The SUPER 10 ceramic 3D printer model has a more robust construction to carry the higher-volume of 3600 ml clay extruder. This large hybrid motor extruder is capable of much faster speeds of extrusion than our standard model 10. Large prints or sequential objects printing can be accomplished without changing the tubes so it is ideal for a production environment. If large prints is what you are looking for, you can also consider the 10XL, or the Scara models.
What's included:
1. 3D PotterBot 10 Super
2. Closed loop stepper on X, Y, Z, extruder
3. 3600ml extruder, 2 tubes
4. 4 anodized aluminum nozzles (standard sizes: 3, 4, 5, and 6mm)
5. Parts Box: Alan key set, grease, Acme driver tool, tie wraps, extra screws
6. Power Supply.
Specifications
Printing Envelope:
X-16” (415mm)
Y-16” (405mm)
Z-20” (500mm)
Printer size:
W-26” L-34” H-40”
Operation space needed: W-32” L-40” H-78”
Bat size (printer bed): 15x15in” (381x381mm)
Height to the top of the extruder fully extended is 78” (1981mm)
Weight with extruder: 52 lbs. (23kg)
Recommended print speed: 1.1”/s’ to 7.9’’/s (30 to 200 mm/s)
Maximum print speed: 7.9in”/s (200mm/s)
Power Supply: Output - 24V 10 amps, Input - 100-240V, 50-60 Hertz.
Power consumption: 24V ~5 amps, ~120 Watt
Main controller board running Duet3D with Atmel SAM4E8E: 120MHz ARM Cortex-M4
